Basic doors
unit
Single doors made entirely of AISI 304 stainless steel, equipped with corner hinges for right or left opening.
An airtight seal is ensured by a magnetic gasket.
| Product | Opening | External & internal size | Gross weight | ||||
| QX21D | a | b | c | d | e | f | kg |
| mm | 431 | 621 | 454 | 644 | 45 | 59,5 | 9,20 |
| Product | Opening | External & internal size | Gross weight | ||||
| QX21S | a | b | c | d | e | f | kg |
| mm | 431 | 621 | 454 | 644 | 45 | 59,5 | 9,20 |

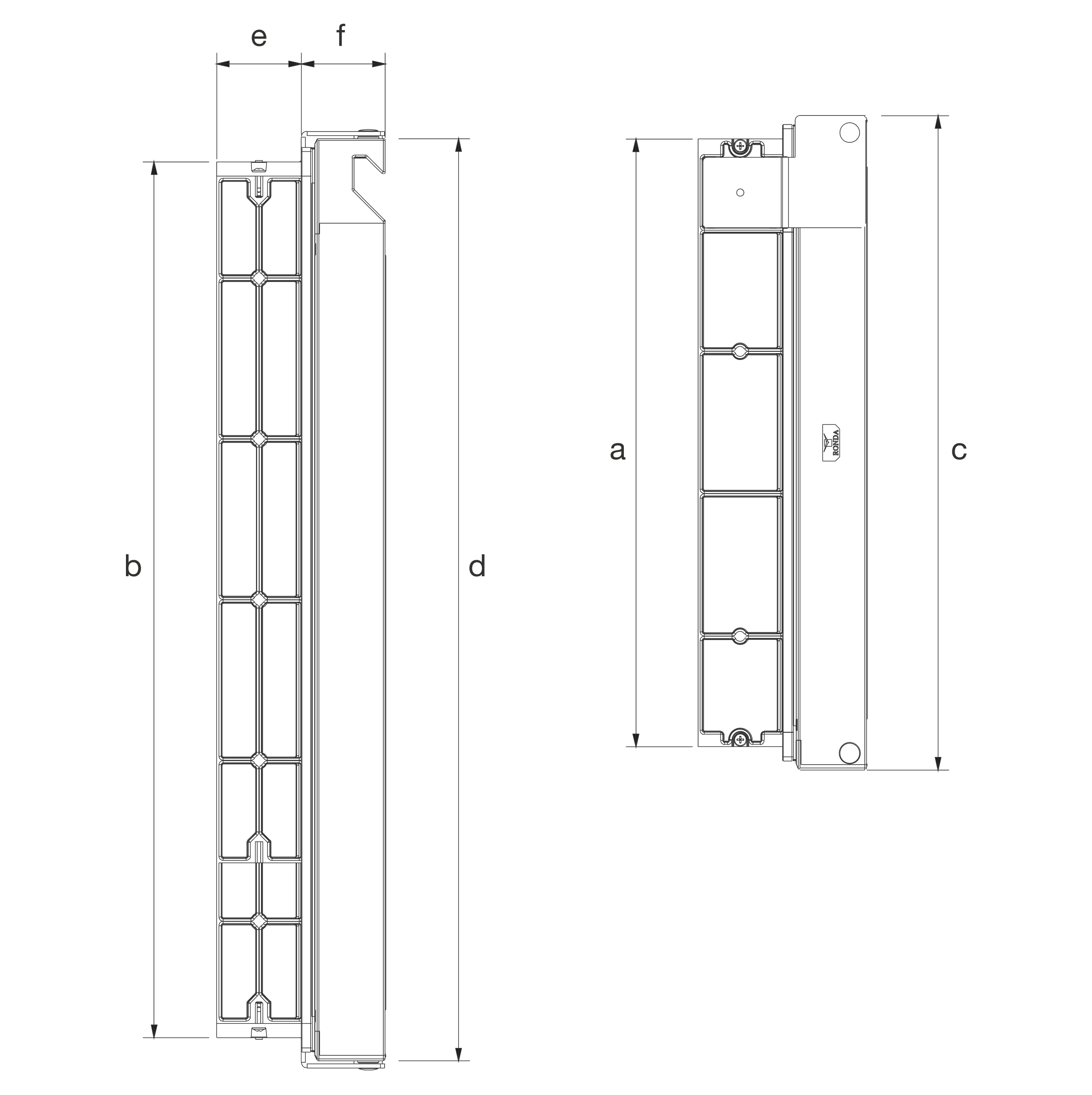

Legend
a/b: opening
c/d: dimensions of the drawer front
e: total depth of the item from the counter front
f: external projection from the counter front
